Specification

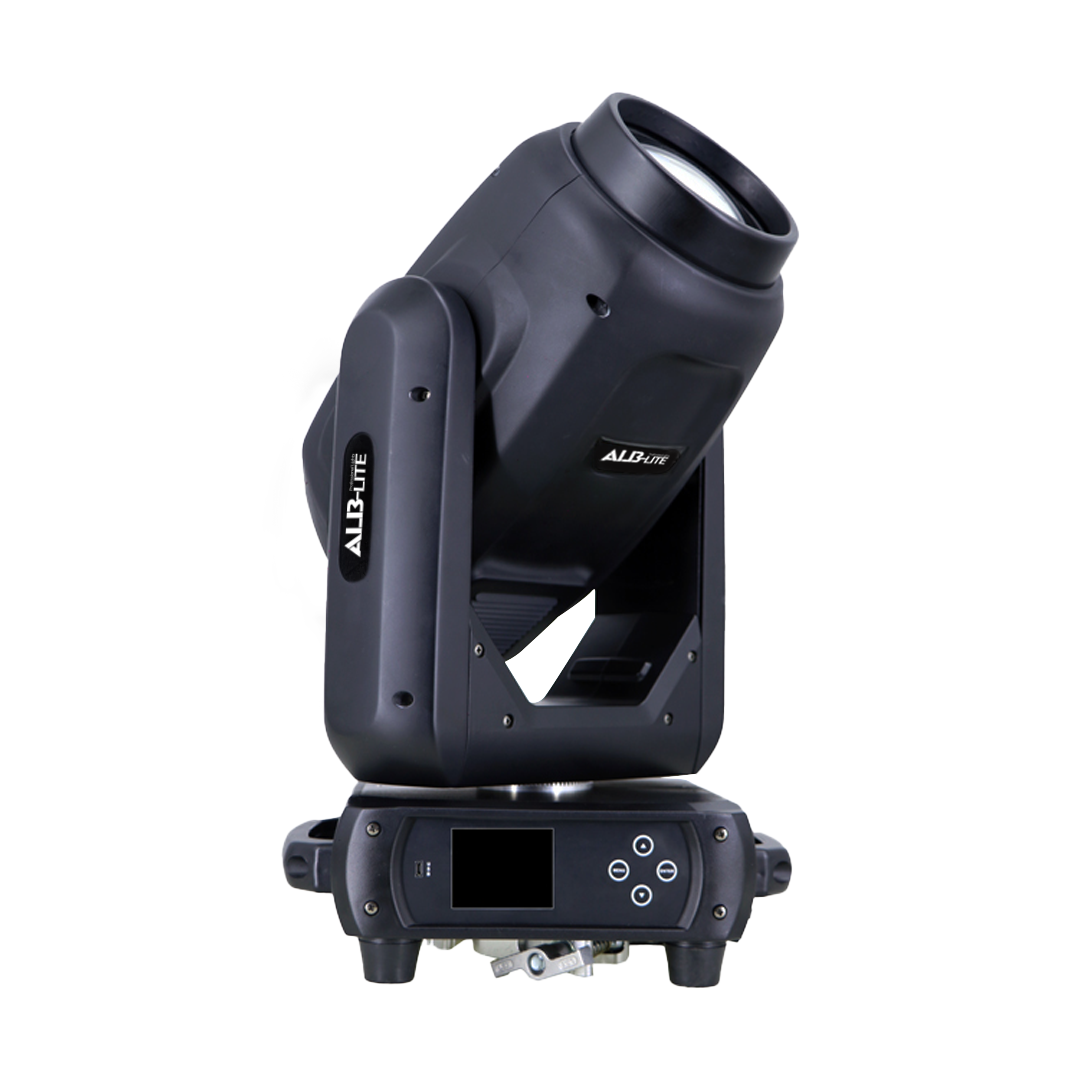

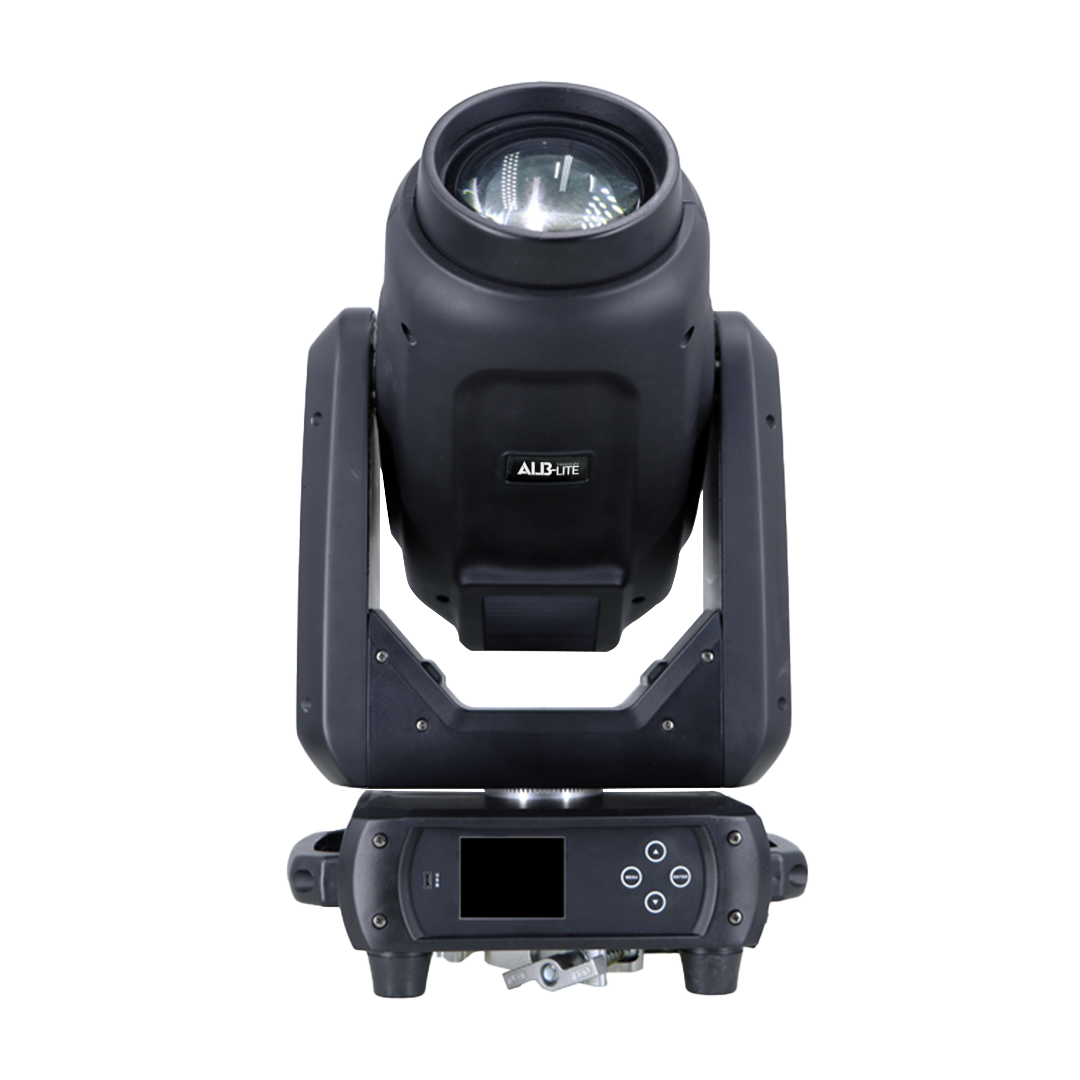

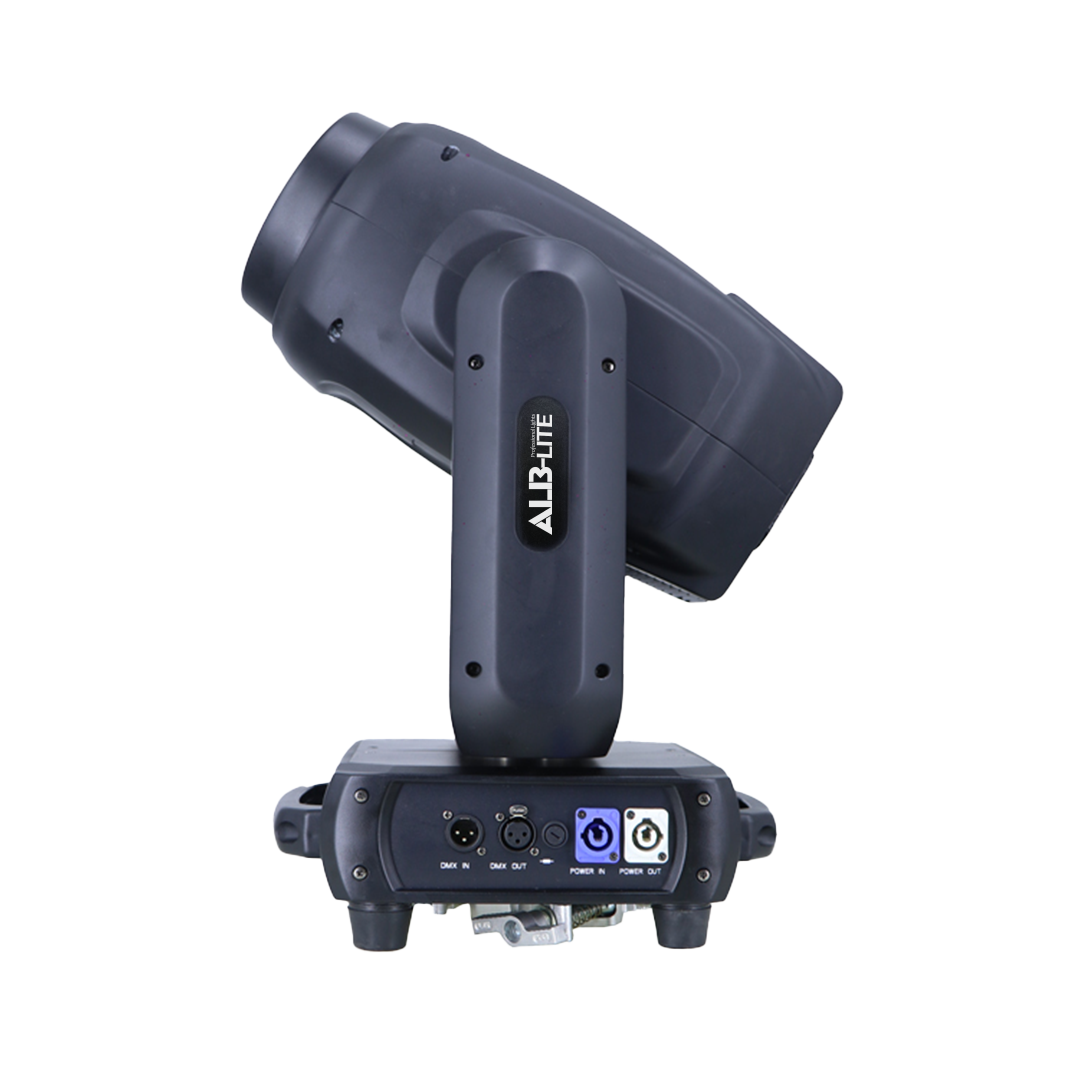

| Model | KIDO-380BSW |
| Voltage | Voltage: AC90-264V, 50/60HzPower: 370W |
| Light source | Light Source: OSRAM SIRIUS HRI ® 371WColor temperature8000K
Light source life: ≥1500hours |
| Working Environment | IP20/-10℃ ~ 45℃ |
| X/Y | X: 540°（16 bit precision scan）Y: 270°（16 bit precision scan）Automatic error correction reset function |
| Color | 1 color wheel: 12 color +4color effect+ white, half-color effect, rainbow effect with bidirectional rotation |
| System | 9 built-in programs to choose fromUpgrade via DMX data cable
Can change the DMX address code from the console, remote control switch bulb, machine reset and other functions Display lamp and light source usage time 2 channel modes:16/13 channels |
| Prism | Prism 1: 8prisms. Prism2: 24 prisms.2 prisms can be stacked |
| Display | Rechargeable battery, you can enter the menu to set without powering on. The Chinese and English languages can be switched, and the display can be reversed 180°, which is convenient for hanging upside down.Reset detection: When there is no DMX signal, manual detection and automatic detection can be selected to facilitate inspection and maintenance. |
| Effect | Focusing angle：1.8°Atomization：Independent atomizationDimming：0-100% linear dimming
Strobe: up to 25Hz, can choose random strobe or pulse strobe |
| Gobo | 1 fixed pattern plate: 14 pattern pieces + white, with pattern dithering and pattern arbitrary positioning function |
| Size & weight | Product Size：192.5*313.1*255mm Packing size (carton)： 730*430*540mm Net weight: 14kgsGross weight (carton): 15.5kgs |
Control
High temperature automatic protection
Standard DMX512 protocol
DMX shortcut interface
RDM function
