SPECIFICATION
Power supply: 110-240 V AC, 50/60 Hz
Power consumption: 15 W
DMX512 inputs: 2 x 3-pin XLR male
DMX512 outputs: 8 x 3-pin XLR female
Ethernet: 2 x RJ45 100 Mbps
Protocol: Art-Net 4
Dimensions (LxWxH):483 x 169 x 44.4 mm
Weight: 2.9 kg
Accessories
ARTNET8
FEATURES
Distributes Art-Net data to 8 DMX512 universes (4096 channels)
Parallel DMX input possible (1024 channels)

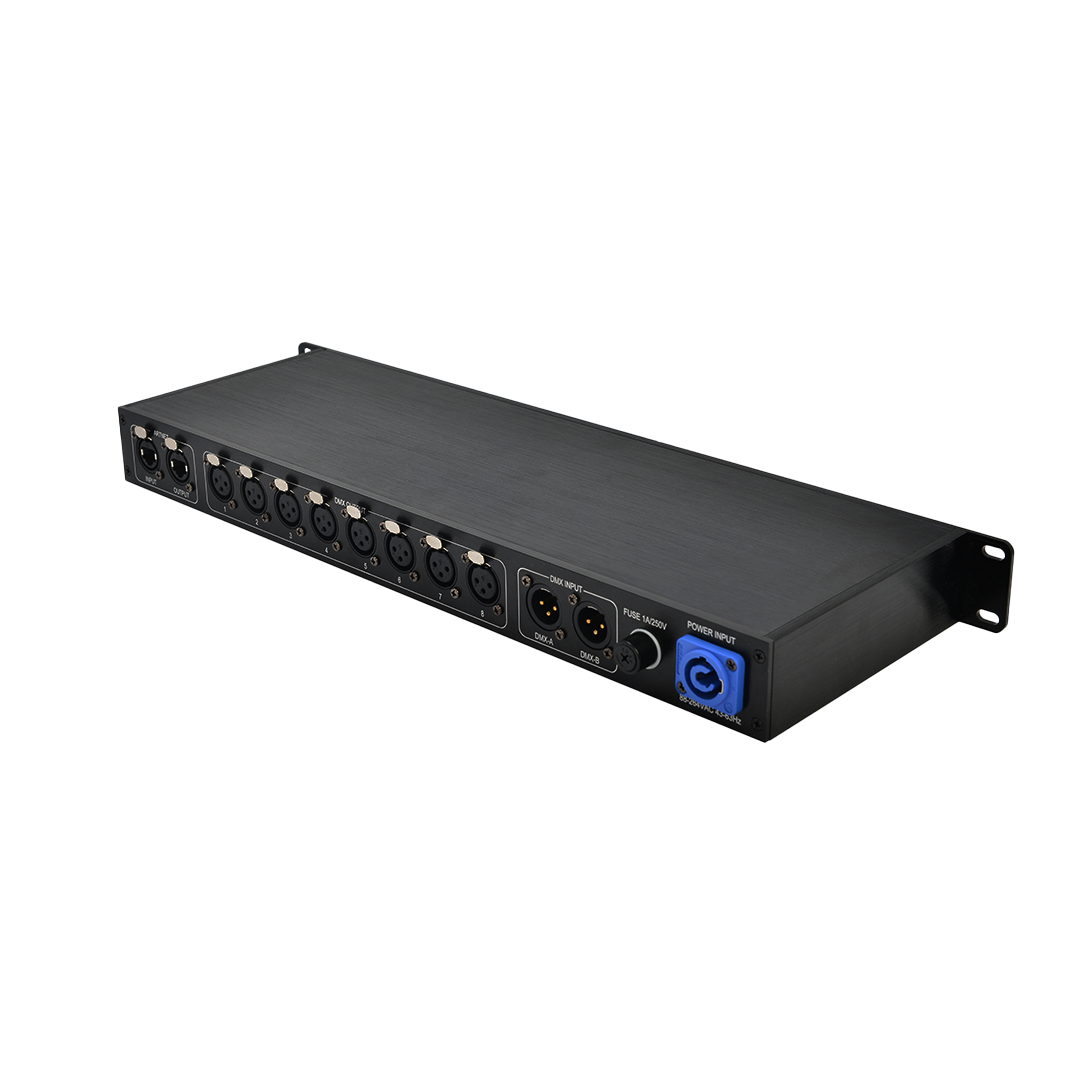

8 optically isolated XLR plugs (3-pin) for DMX output

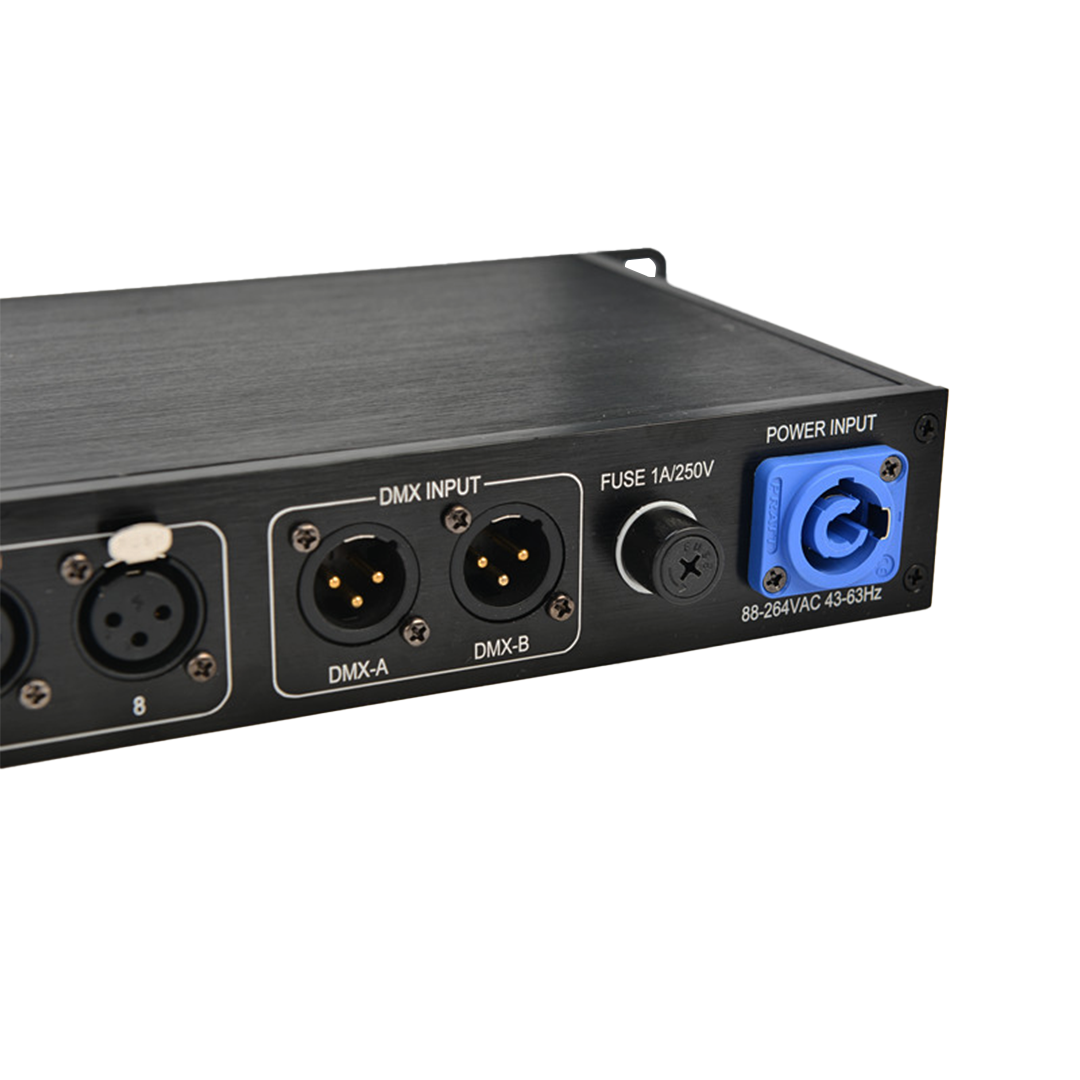

2 XLR (3-pin) for DMX input
Variable data routing capabilities for all DMX outputs
1 x powercon in/through port
Serial connection possible

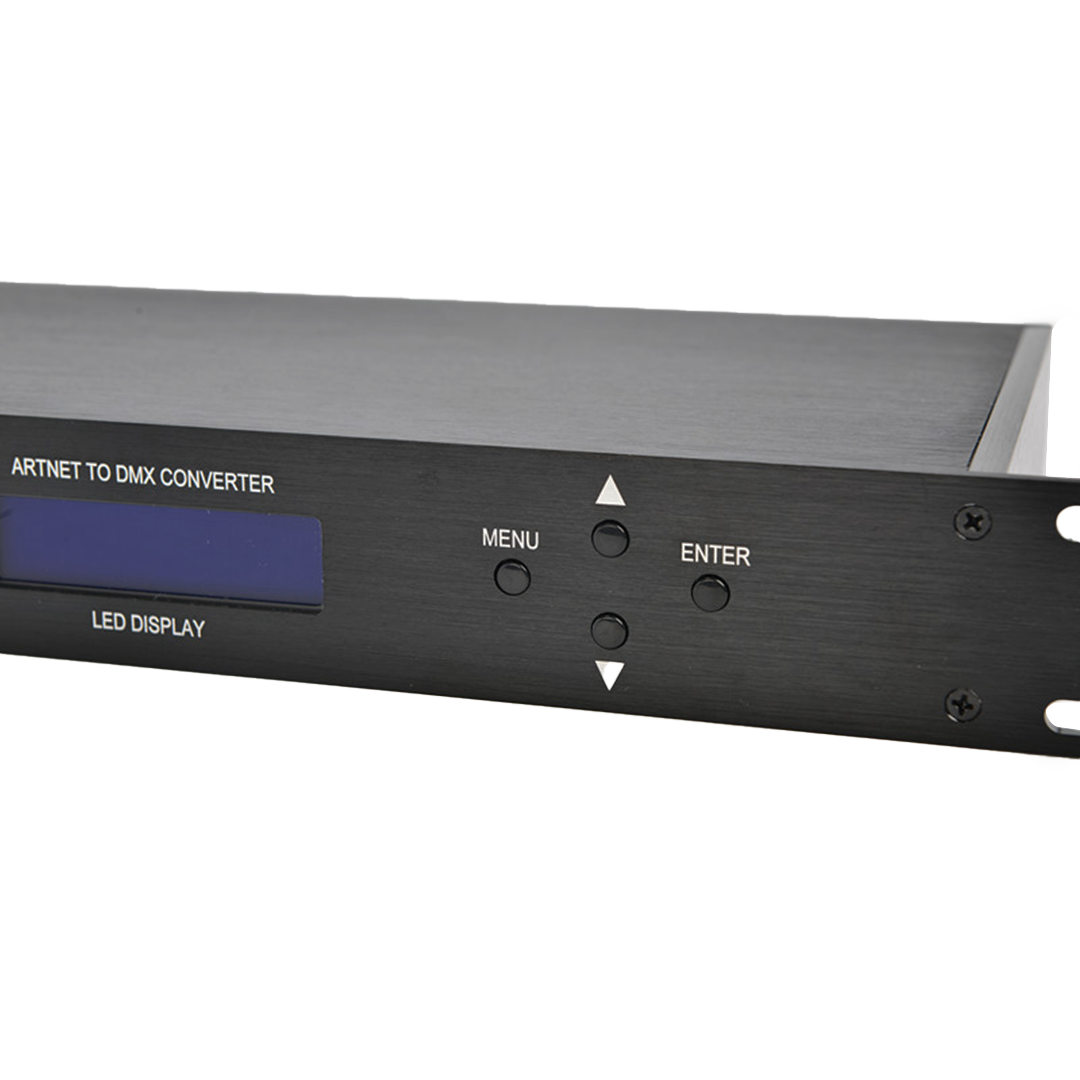

User-friendly configuration directly at the front panel via 4 operating buttons and alphanumeric LCD screen (2 x 16 characters)
LED indication for functions
DMX Splitter / DMX booster operation possible
Rack installation 1 U
